ALFA ROMEO 105 & 115 GTV PANELS

Alfa Romeo GTV, GT Junior


Garage Sale Page We're parting out some Alfas. See if we have what you need.

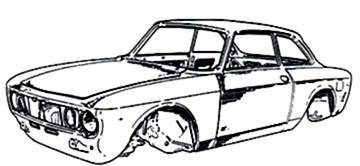

The Bertone designed GTV coupe is one of Alfa Romeo's best designs: From the restorer's point of view it is a very strong construction and a very simple design to restore. From the owner's point of view it is a very satisfying car to drive and is also simple enough for most of the maintenance to be performed by the owner at home.

We are making just about all the panels for this car from the "beltline down", that is from the horizontal crease that runs from front to back about the upper middle of the car.

The following is a list of parts with a brief description:

PN LOWER SIDE PANELS AND SILLS       discussion   PRICE USD
G1L
G1R
Front Fender Repair: from door opening to wheel opening, it is half way to belt line or 11" tall $65.00
G2 Rocker Panel: correct curve, goes inside door, upper aspect laps onto top sill. The front and rear edges both have a steps which fit behind the front fender and rear quarter making it possible to retain the vertical lines below the door. $45.00
G3L
G3R
Rear Fender Repair: from door opening to the front part of the rear wheel opening $65.00
G4L
G4R
Behind the Rear Wheel: under the bumper $68.00
G5L
G5R
Top Sill:. This is what the stainless sill plate attaches to You are stepping over this when you enter the car.. $35.00
G6L
G6R
Inner Sill: mfd. in Canada; if you can save the top channel of the original, this will save many hours of hard work $75.00
G7L
G7R
Middle Sill: mfd. in Canada, replaces the original entirely, puts the necessary rigidity back into the sill sections $75.00
G7A Front section sill repair kit. If only the first 16" of your front sill are bad, this might be the solution you need. The kit comes with the first 16 inches of the left and right inner sills, the first 16 inches of the left and right middle sills, the a-pillar bases for both sides of the car as well as the 18 GA "covers" which fit over the pillar bases. Everything but the covers is made from 16 GA steel. $175.00
G8 2 Middle Sills, and 2 Inner Sills, mfd. in Canada "Kit Price" $275.00
G8AL
G8AR
"A" Pillar Base. As the name implies, this is what the "A" pillar sits on. It welds to the inner and middle sills, like the original. It's made from 16 GA. Steel $35.00
G8BL
G8BR
"B" Pillar Base. Very similar to the "A" pillar base mentioned above, except that it sits under the pillar behind the door. $35.00
G8CL
G8CR
"A" pillar base covers. These fit over the "G8As" above. They're equivalent to the front section of the inner 2 piece factory rocker. They're made from 18GA. Steel. $25.00

PN FLOOR PANELS   PRICE USD
RG7L
RG7R
Front Floor: from the seat cross member forward, two inches up the firewall. Goes up the inner sill 2" for easy lap joint. Reaches transmission tunnel.

*For cars with floor mounted pedals.
$100.00
RG7L1
RG7R1
Front Floor: from the seat cross member forward, two inches up the firewall. Goes up the inner sill 2" for easy lap joint. Reaches transmission tunnel.

*For cars with Hanging pedals.
$L135.00
$R100.00
G10L
G10R
Rear Floor: Goes from the seat cross member to the vertical wall where the rear seat starts. $100.00

PN DOOR PANELS   PRICE USD
G11L
G11R
Door Skin Repair: The first 5" of the outside skin $45.00

PN FRONT PANELS, REAR PANELS AND OTHERS YOU MAY NEED   PRICE USD
G14 Front Valence: center section 37" long X 7 1/2" wide. Includes drainage flutes under the radiator. photo coming soon $110.00
G14A Long Version Of Front Valence: wheel opening to wheel opening $150.00
G15L
G15R
Rear Quarter: door to tail light, belt line down. This is a far superior alternative to patching a weak quarter panel. One long weld means much less finishing work. $300.00
G16L
G16R
Left Front Fender: belt line down photo coming soon $220.00
G17 Spare Tire Well, complete, 2 pieces photo coming soon $170.00
G17A Bottom of tire well only: $100.00
G18L
G18R
NEW!: 2 PC. Windshield corner repair Kit.. Fixes the rust prone area on the lower corner of the windshield / cowl area. Click on the adjascent pic for more info. $120.00
G18AL
G18AR
NEW!: Windshield pillar repair. Got a rusty a-pillar? Weld this in . $90.00
G18BL
G18BR
NEW!: Windshield cowl repair. Only got a rusty cowl? Then Only chnage this. $40.00

ROCKER PANELS - SILLS DISCUSSION:

This is one of the most rust prone parts of the body and its integrity is critical to the strength of the car.

It must be understood that this body is wider in the middle than on the ends. Thereby it is imperative that the rocker be curved the "long way" to match the door. Start by measuring the curve of the doors. Hold a straight edge up to the door on the horizontal plane and you can observe a 1/4 inch missing on each end. Build the car around a set of nice curved doors. This will give you that "Flying Saucer" look.

Part numbers 1,2, and 3 comprise the complete exterior rocker panel. Building this in three pieces allows the restorer to recreate the vertical seams in the rocker directly below the door openings. These are actually continuations of the vertical door opening lines.
